    1. CHC-M1815A1-AS12

      M18

       Stainless steel, suitable for AC power supply, stable performance

       Stable temperature drift performance and high sensitivity

       A variety of cables and plugs to meet individual needs

      Industry application:Automobile industry / Packaging industry / Smart storage / Metallurgical Industry / Petrochemical / Printing industry / Machine tool industry / Textile industry / Food Industry / Factory automation

      主要特點

      • Operating voltage(vdc)
      • 20…250VAC
      • Voltage Drop
      • <9VAC(300mA)
      • Load Current
      • Max.Load:300mA;Min.Load:5mA
      • Residual Ripple
      • <2.5mA
      • Swithing Hysteresis
      • <15%(sr)
      • Repeat Accuracy
      • <5.0%(sr)
      • Operating Temp
      • -25℃…70℃
      • Protection Class
      • IP67
      • Short Circuit Protection
      • YES
      • Reverse Polarity Protection
      • YES
      • Housing Material
      • Brass Nickel Plated
      • Material (Sensing Face)
      • PBT
      • Output Indicator
      • LED Yellow

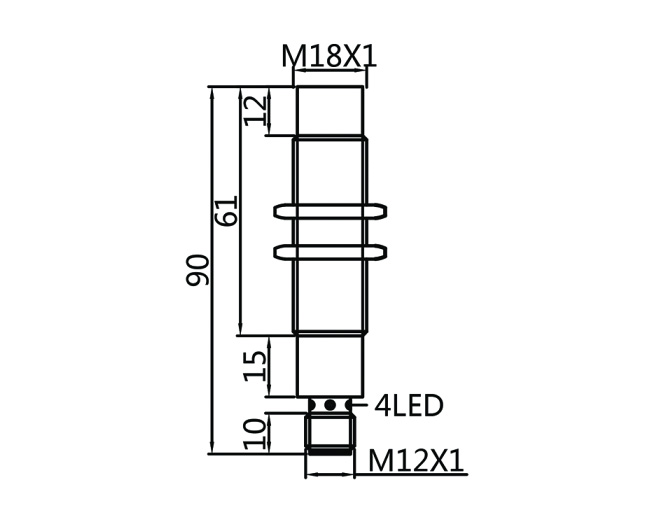

      產(chǎn)品尺寸圖

      下載
