電容式直流3線傳感器
涵括M5，? 6.5，M8，M12，M18，M30的圓柱形，多種外殼材質選擇（塑料外殼和金屬外殼）
結構設計緊湊，方便安裝
溫漂性能穩定，靈敏度高
行業應用：汽車行業 / 包裝行業 / 智能倉儲 / 冶金工業 / 石油化工 / 印刷行業 / 機床行業 / 紡織行業 / 食品行業 / 工廠自動化
電容式接近傳感器
基本參數
- Φ6.5
- M8
- M12
- M18
- M30
| 型號 | 照片 | 規格 | 感應距離 | 開關頻率 | 安裝方式 | 輸出信號 | 產品長度 | 連接方式 |
|---|---|---|---|---|---|---|---|---|

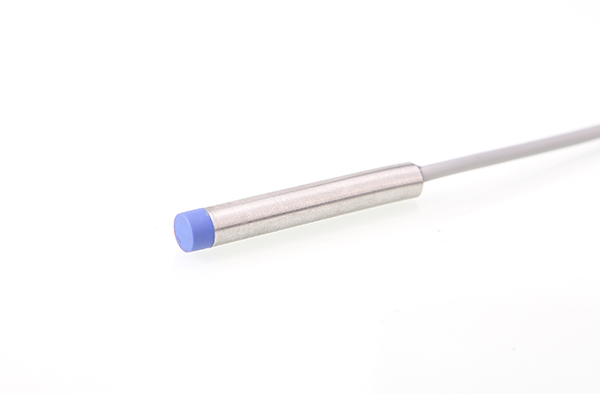

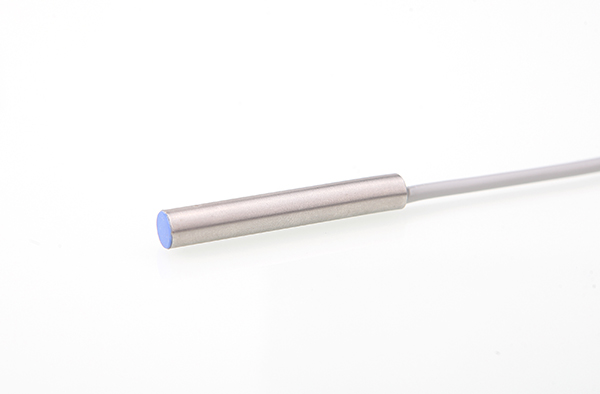

| COV-H6.501N1-DP3 |  |
Φ6.5 | 1mm | 100Hz | Flush 齊平 | NPN.NO | 45mm | Cable,2m,3-wire |
| COV-H6.501N2-DP3 | |
Φ6.5 | 1mm | 100Hz | Flush 齊平 | NPN.NC | 45mm | Cable,2m,3-wire |
| COV-H6.501P1-DP3 | |
Φ6.5 | 1mm | 100Hz | Flush 齊平 | PNP.NO | 45mm | Cable,2m,3-wire |
| COV-H6.501P2-DP3 | |
Φ6.5 | 1mm | 100Hz | Flush 齊平 | PNP.NC | 45mm | Cable,2m,3-wire |
| CHV-H6.502N1-DP3 |  |
Φ6.5 | 2mm | 100Hz | Non-flush 非齊平 | NPN.NO | 45mm | Cable,2m,3-wire |
| CHV-H6.502N2-DP3 | |
Φ6.5 | 2mm | 100Hz | Non-flush 非齊平 | NPN.NC | 45mm | Cable,2m,3-wire |
| CHV-H6.502P1-DP3 | |
Φ6.5 | 2mm | 100Hz | Non-flush 非齊平 | PNP.NO | 45mm | Cable,2m,3-wire |
| CHV-H6.502P2-DP3 | |
Φ6.5 | 2mm | 100Hz | Non-flush 非齊平 | PNP.NC | 45mm | Cable,2m,3-wire |
| 型號 | 照片 | 規格 | 感應距離 | 開關頻率 | 安裝方式 | 輸出信號 | 產品長度 | 連接方式 |
|---|---|---|---|---|---|---|---|---|
| COV-M0801N1-DP3 |  |
M8 | 1mm | 100Hz | Flush 齊平 | NPN.NO | 45mm | Cable,2m,3-wire |
| COV-M0801N2-DP3 | |
M8 | 1mm | 100Hz | Flush 齊平 | NPN.NC | 45mm | Cable,2m,3-wire |
| COV-M0801P1-DP3 | |
M8 | 1mm | 100Hz | Flush 齊平 | PNP.NO | 45mm | Cable,2m,3-wire |
| COV-M0801P2-DP3 | |
M8 | 1mm | 100Hz | Flush 齊平 | PNP.NC | 45mm | Cable,2m,3-wire |
| CHV-M0802N1-DP3 |  |
M8 | 2mm | 100Hz | Non-flush 非齊平 | NPN.NO | 45mm | Cable,2m,3-wire |
| CHV-M0802N2-DP3 | |
M8 | 2mm | 100Hz | Non-flush 非齊平 | NPN.NC | 45mm | Cable,2m,3-wire |
| CHV-M0802P1-DP3 | |
M8 | 2mm | 100Hz | Non-flush 非齊平 | PNP.NO | 45mm | Cable,2m,3-wire |
| CHV-M0802P2-DP3 | |
M8 | 2mm | 100Hz | Non-flush 非齊平 | PNP.NC | 45mm | Cable,2m,3-wire |
| COV-M0801N1-DS845 |  |
M8 | 1mm | 100Hz | Flush 齊平 | NPN.NO | 45mm | Connector M8,3-pole |
| COV-M0801N2-DS845 | |
M8 | 1mm | 100Hz | Flush 齊平 | NPN.NC | 45mm | Connector M8,3-pole |
| COV-M0801P1-DS845 | |
M8 | 1mm | 100Hz | Flush 齊平 | PNP.NO | 45mm | Connector M8,3-pole |
| COV-M0801P2-DS845 | |
M8 | 1mm | 100Hz | Flush 齊平 | PNP.NC | 45mm | Connector M8,3-pole |
| CHV-M0802N1-DS845 |  |
M8 | 2mm | 100Hz | Non-flush 非齊平 | NPN.NO | 45mm | Connector M8,3-pole |
| CHV-M0802N2-DS845 | |
M8 | 2mm | 100Hz | Non-flush 非齊平 | NPN.NC | 45mm | Connector M8,3-pole |
| CHV-M0802P1-DS845 | |
M8 | 2mm | 100Hz | Non-flush 非齊平 | PNC.NO | 45mm | Connector M8,3-pole |
| CHV-M0802P2-DS845 | |
M8 | 2mm | 100Hz | Non-flush 非齊平 | PNP.NC | 45mm | Connector M8,3-pole |
| 型號 | 照片 | 規格 | 感應距離 | 開關頻率 | 安裝方式 | 輸出信號 | 產品長度 | 連接方式 |
|---|---|---|---|---|---|---|---|---|
| COC-M1203N1-DP3 |  |
M12 | 3mm | 100Hz | Flush 齊平 | NPN.NO | 50mm | Cable,2m,3-wire |
| COC-M1203N2-DP3 | |
M12 | 3mm | 100Hz | Flush 齊平 | NPN.NC | 50mm | Cable,2m,3-wire |
| COC-M1203P1-DP3 | |
M12 | 3mm | 100Hz | Flush 齊平 | PNP.NO | 50mm | Cable,2m,3-wire |
| COC-M1203P2-DP3 | |
M12 | 3mm | 100Hz | Flush 齊平 | PNP.NC | 50mm | Cable,2m,3-wire |
| CHC-M1206N1-DP3 |  |
M12 | 6mm | 100Hz | Non-flush 非齊平 | NPN.NO | 50mm | Cable,2m,3-wire |
| CHC-M1206N2-DP3 | |
M12 | 6mm | 100Hz | Non-flush 非齊平 | NPN.NC | 50mm | Cable,2m,3-wire |
| CHC-M1206P1-DP3 | |
M12 | 6mm | 100Hz | Non-flush 非齊平 | PNP.NO | 50mm | Cable,2m,3-wire |
| CHC-M1206P2-DP3 | |
M12 | 6mm | 100Hz | Non-flush 非齊平 | PNP.NC | 50mm | Cable,2m,3-wire |
| COC-M1203N1-DS12 |  |
M12 | 3mm | 100Hz | Flush 齊平 | NPN.NO | 50mm | Connector M12,4-pole |
| COC-M1203N2-DS12 | |
M12 | 3mm | 100Hz | Flush 齊平 | NPN.NC | 50mm | Connector M12,4-pole |
| COC-M1203P1-DS12 | |
M12 | 3mm | 100Hz | Flush 齊平 | PNP.NO | 50mm | Connector M12,4-pole |
| COC-M1203P2-DS12 | |
M12 | 3mm | 100Hz | Flush 齊平 | PNP.NC | 50mm | Connector M12,4-pole |
| CHC-M1206N1-DS12 |  |
M12 | 6mm | 100Hz | Non-flush 非齊平 | NPN.NO | 50mm | Connector M12,4-pole |
| CHC-M1206N2-DS12 | |
M12 | 6mm | 100Hz | Non-flush 非齊平 | NPN.NC | 50mm | Connector M12,4-pole |
| CHC-M1206P1-DS12 | |
M12 | 6mm | 100Hz | Non-flush 非齊平 | PNP.NC | 50mm | Connector M12,4-pole |
| CHC-M1206P2-DS12 | |
M12 | 6mm | 100Hz | Non-flush 非齊平 | PNP.NC | 50mm | Connector M12,4-pole |
| 型號 | 照片 | 規格 | 感應距離 | 開關頻率 | 安裝方式 | 輸出信號 | 產品長度 | 連接方式 |
|---|---|---|---|---|---|---|---|---|
| COC-M1808N1-DP3 |  |
M18 | 8mm | 100Hz | Flush 齊平 | NPN.NO | 80mm | Cable,2m,3-wire |
| COC-M1808N2-DP3 | |
M18 | 8mm | 100Hz | Flush 齊平 | NPN.NC | 80mm | Cable,2m,3-wire |
| COC-M1808P1-DP3 | |
M18 | 8mm | 100Hz | Flush 齊平 | PNP.NO | 80mm | Cable,2m,3-wire |
| COC-M1808P2-DP3 | |
M18 | 8mm | 100Hz | Flush 齊平 | PNP.NC | 80mm | Cable,2m,3-wire |
| CHC-M1815N1-DP3 |  |
M18 | 15mm | 100Hz | Non-flush 非齊平 | NPN.NO | 80mm | Cable,2m,3-wire |
| CHC-M1815N2-DP3 | |
M18 | 15mm | 100Hz | Non-flush 非齊平 | NPN.NC | 80mm | Cable,2m,3-wire |
| CHC-M1815P1-DP3 | |
M18 | 15mm | 100Hz | Non-flush 非齊平 | PNP.NO | 80mm | Cable,2m,3-wire |
| CHC-M1815P2-DP3 | |
M18 | 15mm | 100Hz | Non-flush 非齊平 | PNP.NC | 80mm | Cable,2m,3-wire |

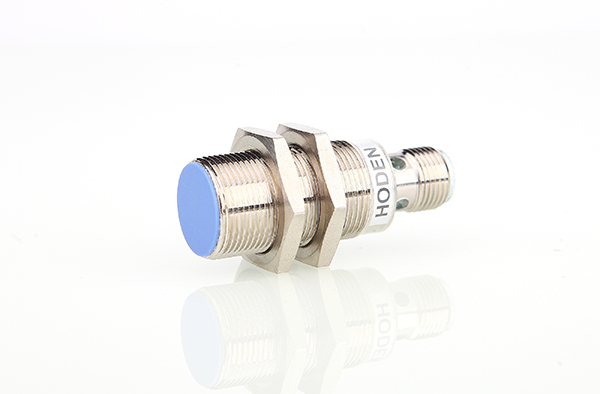

| COC-M1808N1-DS12 |  |
M18 | 8mm | 100Hz | Flush 齊平 | NPN.NO | 90mm | Connector M12,4-pole |
| COC-M1808N2-DS12 | |
M18 | 8mm | 100Hz | Flush 齊平 | NPN.NC | 90mm | Connector M12,4-pole |
| COC-M1808P1-DS12 | |
M18 | 8mm | 100Hz | Flush 齊平 | PNP.NO | 90mm | Connector M12,4-pole |
| COC-M1808P2-DS12 | |
M18 | 8mm | 100Hz | Flush 齊平 | PNP.NC | 90mm | Connector M12,4-pole |

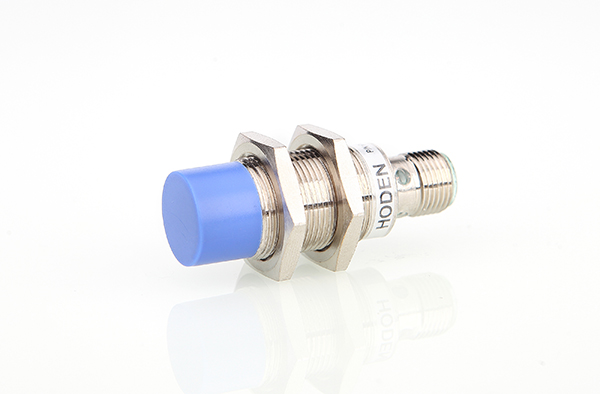

| CHC-M1815N1-DS12 |  |
M18 | 15mm | 100Hz | Non-flush 非齊平 | NPN.NO | 90mm | Connector M12,4-pole |
| CHC-M1815N2-DS12 | |
M18 | 15mm | 100Hz | Non-flush 非齊平 | NPN.NC | 90mm | Connector M12,4-pole |
| CHC-M1815P1-DS12 | |
M18 | 15mm | 100Hz | Non-flush 非齊平 | PNP.NO | 90mm | Connector M12,4-pole |
| CHC-M1815P2-DS12 | |
M18 | 15mm | 100Hz | Non-flush 非齊平 | PNP.NC | 90mm | Connector M12,4-pole |
| 型號 | 照片 | 規格 | 感應距離 | 開關頻率 | 安裝方式 | 輸出信號 | 產品長度 | 連接方式 |
|---|---|---|---|---|---|---|---|---|
| COC-M3020N1-DP3 |  |
M30 | 20mm | 100Hz | Flush 齊平 | NPN.NO | 80mm | Cable,2m,3-wire |
| COC-M3020N2-DP3 | |
M30 | 20mm | 100Hz | Flush 齊平 | NPN.NC | 80mm | Cable,2m,3-wire |
| COC-M3020P1-DP3 | |
M30 | 20mm | 100Hz | Flush 齊平 | PNP.NO | 80mm | Cable,2m,3-wire |
| COC-M3020P2-DP3 | |
M30 | 20mm | 100Hz | Flush 齊平 | PNP.NC | 80mm | Cable,2m,3-wire |
| CHC-M30P30N1-DP3 |  |
M30 | 30mm | 100Hz | Non-flush 非齊平 | NPN.NO | 80mm | Cable,2m,3-wire |
| CHC-M30P30N2-DP3 | |
M30 | 30mm | 100Hz | Non-flush 非齊平 | NPN.NC | 80mm | Cable,2m,3-wire |
| CHC-M30P30P1-DP3 | |
M30 | 30mm | 100Hz | Non-flush 非齊平 | PNP.NO | 80mm | Cable,2m,3-wire |
| CHC-M30P30P2-DP3 | |
M30 | 30mm | 100Hz | Non-flush 非齊平 | PNP.NC | 80mm | Cable,2m,3-wire |

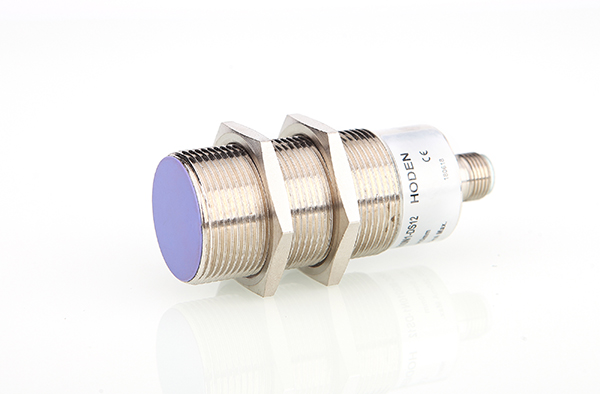

| COC-M3020N1-DS12 |  |
M30 | 20mm | 100Hz | Flush 齊平 | NPN.NO | 90mm | Connector M12,4-pole |
| COC-M3020N2-DS12 | |
M30 | 20mm | 100Hz | Flush 齊平 | NPN.NC | 90mm | Connector M12,4-pole |
| COC-M3020P1-DS12 | |
M30 | 20mm | 100Hz | Flush 齊平 | PNP.NO | 90mm | Connector M12,4-pole |
| COC-M3020P2-DS12 | |
M30 | 20mm | 100Hz | Flush 齊平 | PNP.NC | 90mm | Connector M12,4-pole |
| CHC-M3030N1-DS12 |  |
M30 | 30mm | 100Hz | Non-flush 非齊平 | NPN.NO | 90mm | Connector M12,4-pole |
| CHC-M3030N2-DS12 | |
M30 | 30mm | 100Hz | Non-flush 非齊平 | NPN.NC | 90mm | Connector M12,4-pole |
| CHC-M3030P1-DS12 | |
M30 | 30mm | 100Hz | Non-flush 非齊平 | PNP.NO | 90mm | Connector M12,4-pole |
| CHC-M3030P2-DS12 | |
M30 | 30mm | 100Hz | Non-flush 非齊平 | PNP.NC | 90mm | Connector M12,4-pole |
